Discover and Package Dependent Resource Modules for a #PSDSC Configuration

If you have ever used the Publish-AzureRmVMDscConfiguration cmdlet in the Azure PowerShell tools, you may know already that this command discovers module dependencies for a configuration and packages all dependencies along with the configuration as a zip archive.

1
Publish-AzureRmVMDscConfiguration ".\MyConfiguration.ps1" -OutputArchivePath ".\MyConfiguration.ps1.zip"

When I first used this cmdlet, I felt this was really a good idea for on-premise build processes and immediately tried to find out how they discover module dependencies. I was almost certain that it was not just text parsing but may be a little bit more than that. This exploration lead me to the source code for this cmdlet and I certainly saw lot of traces towards AST being used.

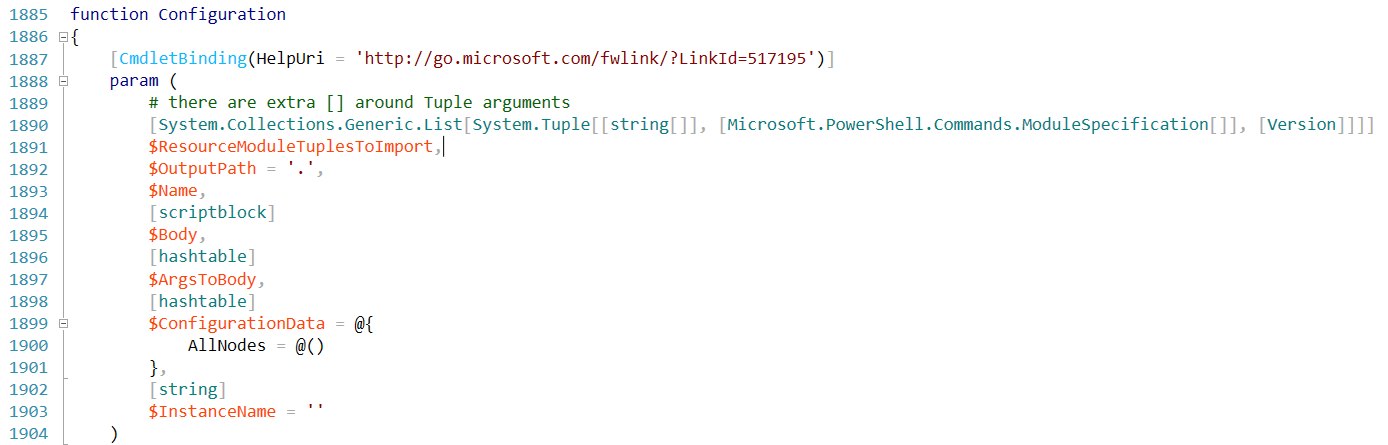

The second instance that I came across the usage of AST in finding resource module dependencies was in the Configuration function in the PSDesiredStateConfiguration module. This function, starting from WMF 5.0, has a runtime parameter called ResourceModulesTuplesToImport.

1
2
3
4
5
6
7
8
9
PS C:\> (Get-Command Configuration | Select-Object -ExpandProperty Parameters).ResourceModuleTuplesToImport

Name            : ResourceModuleTuplesToImport
ParameterType   : System.Collections.Generic.List`1[System.Tuple`3[System.String[],Microsoft.PowerShell.Commands.ModuleSpecification[],System.Version]]
ParameterSets   : {[__AllParameterSets, System.Management.Automation.ParameterSetMetadata]}
IsDynamic       : False
Aliases         : {}
Attributes      : {__AllParameterSets, System.Management.Automation.ArgumentTypeConverterAttribute}
SwitchParameter : False

The argument for the ResourceModulesTuplesToImport gets populated at runtime — when a Configuration gets loaded for the first time. To be specific, when you create a configuration document and load it into the memory, AST gets triggered and populates the argument to this parameter. You can trace this back to ast.cs. Here is a part of that.

1
2
3
4
5
///////////////////////////
// get import parameters
var bodyStatements = Body.ScriptBlock.EndBlock.Statements;
var resourceModulePairsToImport = new List<Tuple>string[], ModuleSpecification[], Version();
var resourceBody = (from stm in bodyStatements where !IsImportCommand(stm, resourceModulePairsToImport) select (StatementAst)stm.Copy()).ToList();

So, the whole magic of deriving the dependent modules is happening in the IsImportCommand method. Once I reviewed the code there, it wasn’t tough to reverse engineer that into PowerShell.

I published my scripts to https://github.com/rchaganti/PSDSCUtils. Let’s take a look at the script now.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
[CmdletBinding()]
param (
    [Parameter(Mandatory)]
    [String] $ConfigurationScript,

    [Parameter()]
    [Switch] $Package,

    [Parameter()]
    [String] $PackagePath
)

$ConfigurationScriptContent = Get-Content -Path $ConfigurationScript -Raw
$ast = [System.Management.Automation.Language.Parser]::ParseInput($ConfigurationScriptContent, [ref]$null, [ref]$null)
$configAst = $ast.FindAll({ $args[0] -is [System.Management.Automation.Language.ConfigurationDefinitionAst]}, $true)
$moduleSpecifcation = @()
foreach ($config in $configAst)
{
    $dksAst = $config.FindAll({ $args[0] -is [System.Management.Automation.Language.DynamicKeywordStatementAst]}, $true)

    foreach ($dynKeyword in $dksAst)
    {
        [System.Management.Automation.Language.CommandElementAst[]] $cea = $dynKeyword.CommandElements.Copy()
        $allCommands = [System.Management.Automation.Language.CommandAst]::new($dynKeyword.Extent, $cea, [System.Management.Automation.Language.TokenKind]::Unknown, $null)
        foreach ($importCommand in $allCommands)
        {
            if ($importCommand.CommandElements[0].Value -eq 'Import-DscResource')
            {
                [System.Management.Automation.Language.StaticBindingResult]$spBinder = [System.Management.Automation.Language.StaticParameterBinder]::BindCommand($importCommand, $false)

                $moduleNames = ''
                $resourceNames = ''
                $moduleVersion = ''
                foreach ($item in $spBinder.BoundParameters.GetEnumerator())
                {
                    $parameterName = $item.key
                    $argument = $item.Value.Value.Extent.Text

                    #Check if the parametername is Name
                    $parameterToCheck = 'Name'
                    $parameterToCheckLength = $parameterToCheck.Length
                    $parameterNameLength = $parameterName.Length

                    if (($parameterNameLength -le $parameterToCheckLength) -and ($parameterName.Equals($parameterToCheck.Substring(0,$parameterNameLength))))
                    {
                        $resourceNames = $argument.Split(',')
                    }

                    #Check if the parametername is ModuleName
                    $parameterToCheck = 'ModuleName'
                    $parameterToCheckLength = $parameterToCheck.Length
                    $parameterNameLength = $parameterName.Length
                    if (($parameterNameLength -le $parameterToCheckLength) -and ($parameterName.Equals($parameterToCheck.Substring(0,$parameterNameLength))))
                    {
                        $moduleNames = $argument.Split(',')
                    }

                    #Check if the parametername is ModuleVersion
                    $parameterToCheck = 'ModuleVersion'
                    $parameterToCheckLength = $parameterToCheck.Length
                    $parameterNameLength = $parameterName.Length
                    if (($parameterNameLength -le $parameterToCheckLength) -and ($parameterName.Equals($parameterToCheck.Substring(0,$parameterNameLength))))
                    {
                        if (-not ($moduleVersion.Contains(',')))
                        {
                            $moduleVersion = $argument
                        }
                        else
                        {
                            throw 'Cannot specify more than one moduleversion'
                        }
                    }
                }

                #Get the module details
                #"Module Names: " + $moduleNames
                #"Resource Name: " + $resourceNames
                #"Module Version: " + $moduleVersion

                if($moduleVersion)
                {
                    if (-not $moduleNames)
                    {
                        throw '-ModuleName is required when -ModuleVersion is used'
                    }

                    if ($moduleNames.Count -gt 1)
                    {
                        throw 'Cannot specify more than one module when ModuleVersion parameter is used'
                    }
                }

                if ($resourceNames)
                {
                    if ($moduleNames.Count -gt 1)
                    {
                        throw 'Cannot specify more than one module when the Name parameter is used'
                    }
                }

                #We have multiple combinations of parameters possible
                #Case 1: All three are provided: ModuleName,ModuleVerison, and Name
                #Case 2: ModuleName and ModuleVersion are provided
                #Case 3: Only Name is provided
                #Case 4: Only ModuleName is provided

                #Case 1, 2, and 3
                #At the moment, there is no error check on the resource names supplied as argument to -Name
                if ($moduleNames)
                {
                    foreach ($module in $moduleNames)
                    {
                        if (-not ($module -eq 'PSDesiredStateConfiguration'))
                        {
                            $moduleHash = @{
                                ModuleName = $module
                            }

                            if ($moduleVersion)
                            {
                                $moduleHash.Add('ModuleVersion',$moduleVersion)
                            }
                            else
                            {
                                $availableModuleVersion = Get-RecentModuleVersion -ModuleName $module
                                $moduleHash.Add('ModuleVersion',$availableModuleVersion)
                            }

                            $moduleInfo = Get-Module -ListAvailable -FullyQualifiedName $moduleHash -Verbose:$false -ErrorAction SilentlyContinue
                            if ($moduleInfo)
                            {
                                #TODO: Check if listed resources are equal or subset of what module exports
                                $moduleSpecifcation += $moduleInfo
                            }
                            else
                            {
                                throw "No module exists with name ${module}"
                            }
                        }
                    }
                }

                #Case 2
                #Foreach resource, we need to find a module
                if ((-not $moduleNames) -and $resourceNames)
                {
                    $moduleHash = Get-DscModulesFromResourceName -ResourceNames $resourceNames -Verbose:$false
                    foreach ($module in $moduleHash)
                    {
                        $moduleInfo = Get-Module -ListAvailable -FullyQualifiedName $module -Verbose:$false
                        $moduleSpecifcation += $moduleInfo
                    }
                }
            }
        }
    }
}

if ($Package)
{
    #Create a temp folder
    $null = mkdir "${env:temp}\modules" -Force -Verbose:$false

    #Copy all module folders to a temp folder
    foreach ($module in $moduleSpecifcation)
    {
        $null = mkdir "${env:temp}\modules\$($module.Name)"
        Copy-Item -Path $module.ModuleBase -Destination "${env:temp}\modules\$($module.Name)" -Container -Recurse -Verbose:$false
    }

    #Create an archive with all needed modules
    Compress-Archive -Path "${env:temp}\modules" -DestinationPath $PackagePath -Force -Verbose:$false

    #Remove the folder
    Remove-Item -Path "${env:temp}\modules" -Recurse -Force -Verbose:$false
}
else
{
    return $moduleSpecifcation
}

function Get-DscModulesFromResourceName
{
    [CmdletBinding()]
    param (
        [Parameter(Mandatory)]
        [string[]] $ResourceNames
    )

    process
    {
        $moduleInfo = Get-DscResource -Name $ResourceNames -Verbose:$false | Select -Expand ModuleName -Unique
        $moduleHash = @()
        foreach ($module in $moduleInfo)
        {
            $moduleHash += @{
                 ModuleName = $module
                 ModuleVersion = (Get-RecentModuleVersion -ModuleName $module)
            }
        }

        return $moduleHash
    }
}

function Get-DscResourcesFromModule
{
    [CmdletBinding()]
    param (
        [Parameter(Mandatory)]
        [String] $ModuleName,

        [Parameter()]
        [Version] $ModuleVersion
    )

    process
    {
        $resourceInfo = Get-DscResource -Module $ModuleName -Verbose:$false
        if ($resourceInfo)
        {
            if ($ModuleVersion)
            {
                $resources = $resourceInfo.Where({$_.Module.Version -eq $ModuleVersion})
                return $resources.Name
            }
            else
            {
                #check if there are multiple versions of the modules; if so, return the most recent one
                $mostRecentVersion = Get-RecentModuleVersion -ModuleName $ModuleName
                Get-DscResourcesFromModule -ModuleName $ModuleName -ModuleVersion $mostRecentVersion
            }
        }
    }
}

function Get-RecentModuleVersion
{
    [CmdletBinding()]
    param (
        [Parameter(Mandatory)]
        [String] $ModuleName
    )

    process
    {
        $moduleInfo = Get-Module -ListAvailable -Name $ModuleName -Verbose:$false | Sort -Property Version
        if ($moduleInfo)
        {
            return ($moduleInfo[-1].Version).ToString()
        }
    }
}

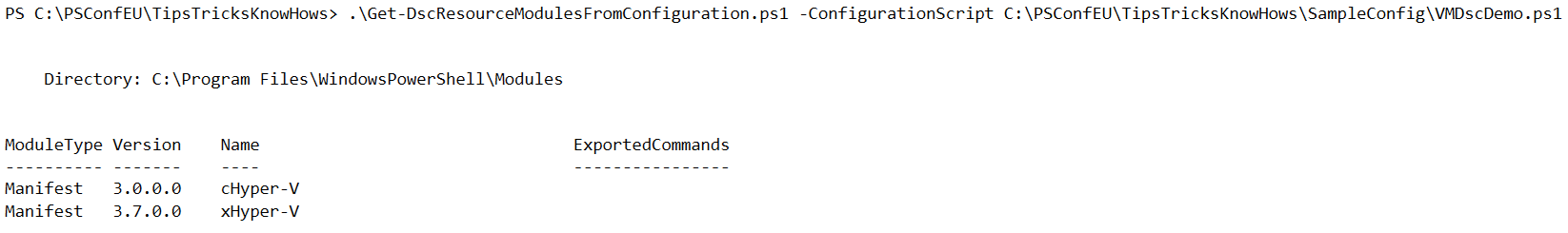

Here is how you used this script:

With just the -ConfigurationScript parameter, this script emits a ModuleInfo object that contains a list of modules that are being imported in the configuration script.

In case you need to package the modules into a zip archive, you can use the -Package and -PackagePath parameters.

1
.\Get-DSCResourceModulesFromConfiguration.ps1 -ConfigurationScript C:\Scripts\VMDscDemo.ps1 -Package -PackagePath C:\Scripts\modules.zip

There are many uses cases for this. I use this extensively in my Hyper-V lab configurations. What are your use cases?
